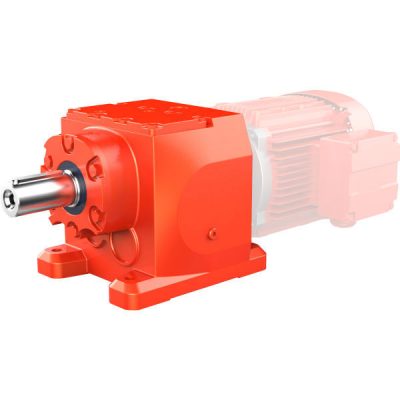

JRTR Helical Inline Gearbox

JRT Series Gearboxes

JRTR1

PRODUCT HIGHLIGHT

Model 17 ~ 187
Ratio 3.37 ~ 289.74
Input power 0.12 ~ 250 kW
Output torque 2.4 ~ 55435 N.m





1 Enterprise Code J 2 Product Code RTR – Helical Geared Motor

RTF – Parallel Shaft-Helical Geared Motor

RTK – Helical-Bevel Geared Motor

RTS – Helical-Worm Geared Motor

3 Installation type No Code – Feet-mounted

F – Flange-mounted

F – Feet and Flange-mounted

M – Flange-mounted with extended bearing housing

X – Single-stage Feet-mounted

XF – Single-stage Flange-mounted

4 Gear Unit Size 27, 37, 47, 57, 67, 77, 87, 97, 107, 137, 147, 167, 177, 187
5 Flange Size I – No Code – No Flange or Only One Flange or The Smallest Flange

II – Second Bigger Flange

Ill – Biggest Flange

6 Electric Motor D – Three Phase Asychronous Motor (IP54)

DP/DE/OS – Energy efficiency rating class1 / class2 / class 3

YB – -Flame-proof Three Phase Asychronous Motor

YGP – Table Roller Three Phase Asychronous Motor

YZP – Metallurgy Hoist Frequency Variable Motor

YD – -Multi Speed Three Phase (IP54)

7 Frame Size 80 – Motor Center Height 80mm 8 Stator Length S, M, L
9 Number of Poles 4 – 4 Poles 10 Brake No Code – No Brakes

BE – Brakes

11 Brake Release No Code – No Brake Release

HF – Screw release(lock in the brake release position) Brake Release

HR – handle release(automatic braking position)

12 Thermal Protection No Code – No Thermistor

TF – Thermistor Sensor

TF – Thermistor protection (PTC thermistor)

TH – Thermostat protection (Bimetal switch)

13 Ratio 128.97 – Ratio 128.97 14 Mounting Position M1 – Mounting Position M1
15 Terminal Box Position No Code – Terminal Box position is 0°

180° – Terminal Box position is 180°

painting
optionalcolors

Product Colors

Our color system includes image color, standard color and optional color. The image color is typical solution combined with sparkling red. The standard color is the main promotional color of “Titanium Grey”. It is the neutral color which can be integrated into all kind of application scene and increase the integrality of reducer and machine.

STANDARD FINISH

Titanium Grey is a neutral color which seamlessly integrates into machine designs offering a professional finish for designers and machine builders.



IMAGE FINISH

Sparkling Red offers designers and machine builders a more dramatic presentation highlighting to the World the equipment is supplied with the most robust and highest quality drive solutions available.



OPTIONAL COLORS

We also offers an array of creative custom color solutions including: Signal White, Sky Blue, Obsidian Black, Ponceau, and Television Grey.

coatingtest

Paint Coating

All our coatings are non-hazardous and adhere to the strictest National Environmental Protection requirements. Our coatings offer strong adhesive properties to eliminate chipping or cracking with high environmental and corrosion resistance. Standard products can be applied in all indoor and medium corrosive outdoor environments. We also offers high-strength coatings to adapt to the most rigorous corrosive environments.

Weather resistance and corrosion resistance period
Environmental Grade 2 years 3 years 5 years 10 years
C2
C3
C4
C5
Coating material: Epoxy primer + high performance polyurethane finish paint. (Note: Blue – Standard coating, Orange – Enhanced coating)
