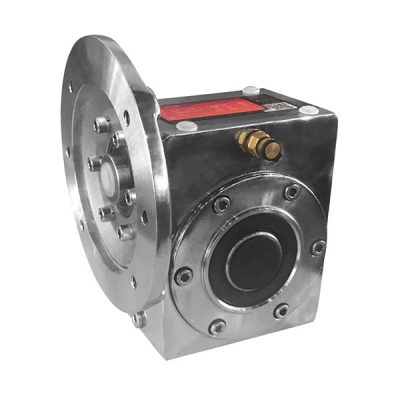

JRESS Series

Stainless Steel Worm Gears

JRESS

PRODUCT HIGHLIGHT

The stainless steel gearmotors from Acrossland keep things moving wherever machines and systems are subject to particularly intensive cleaning. Regardless of whether the gearmotors are used for materials handling, intralogistics or hygienic applications, their hygienic properties, long operating life and maintenance friendliness make them optimally suited to the specific production conditions in the food and beverage industry, pharmaceutical industry, and in permanently wet environments. This product meets (( DOC.8 Hygienic equipment design criteria)) — EU Hygienic standard for food machinery.



Model 40 ~ 90
Ratio 7.5 ~ 100
Input power 0.09 ~ 4 kW
Output torque 19 ~ 458 N.m





1 Enterprise Code J 2 Product Code RESS – Stainless steel worm gear reducer for food
3 Input shaft connection mode D – Flange with motor 4 Specification
63 – paired worm gear distance



5 Ratio 100 6 Number of poles A – Single output shaft

B – Double output shaft

E – With torsion arm

No coe – No torsion arm

7 Flange specification 71 – Matching motor size number

B5, B14 – Model flange structure
