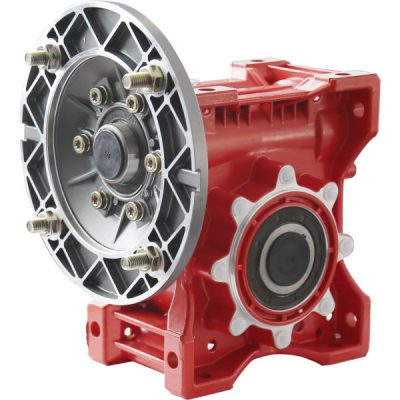

JRSTD Series

JRST Worm Gears

JRSTD

PRODUCT HIGHLIGHT

Model 25 ~ 150
Ratio 7.5 ~ 100
Input power 0.06 ~ 15 kW
Output torque 2.6 ~ 2,670 N.m





1 Enterprise Code J 2 Product Code RST – universal installation worm gear reducer
3 Unit structure Non-code – Single

E – Double

4 Connector of input shaft Non-code – Single input shaft

B – Double shaft input

DB – Shaft input with motor flange input

D – with motor flange

5 Product specification 110 – Single step center distance

63/130 – Double step center distance

6 Ratio 100
7 Mounting position Download tables 8 Output flange Download tables
9 Accessories A – Single output shaft

B – Doube output shaft

C – Base plate

D – Protective cover

E – Torqute arm

10 Flange specification 90 – Motor specification

B5, B14 – Motor flange structure

No-code – No flange input
